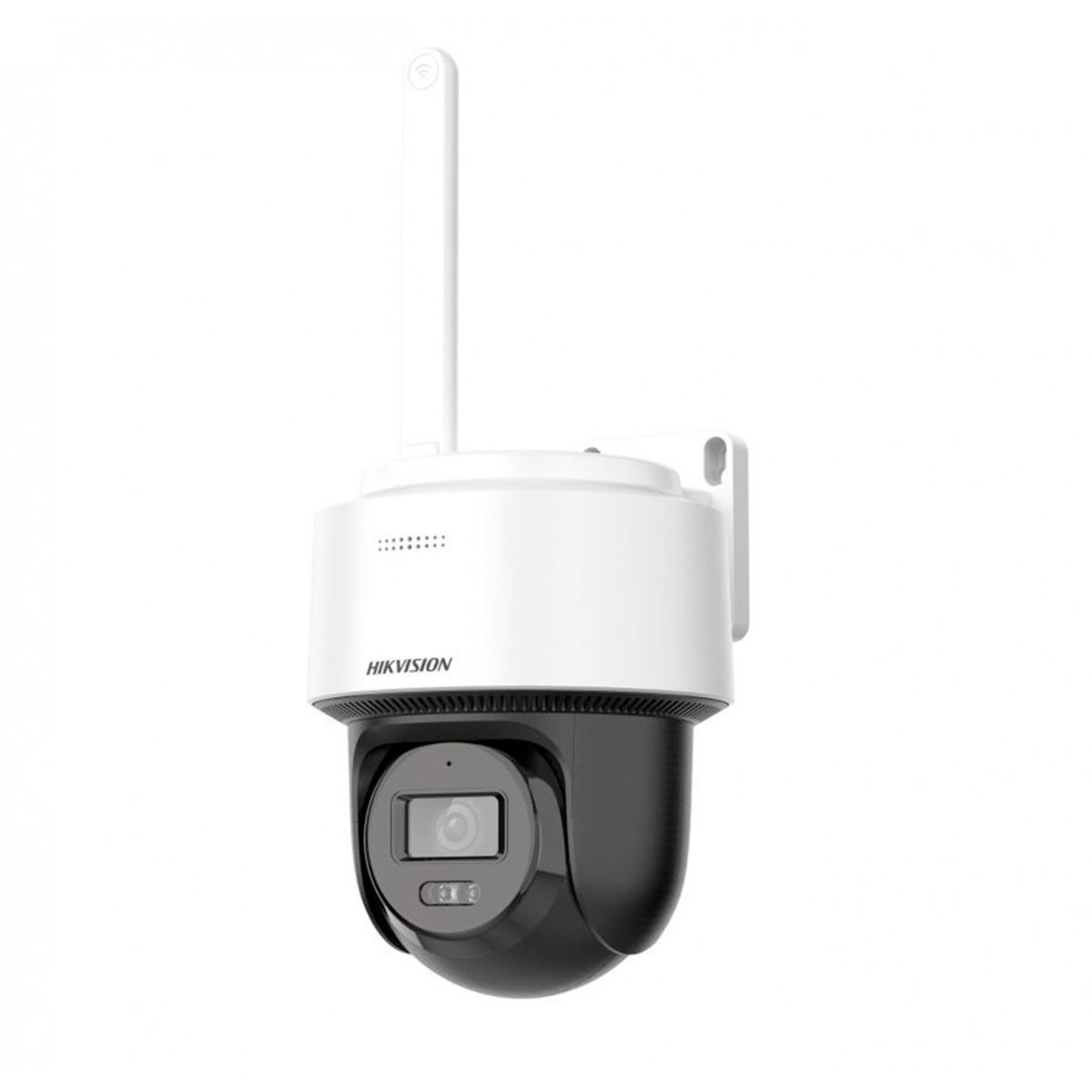

Camara PT Hikvision 4G 2MP Dual Light 30m Audio Bidi DS-2DE2C200MWG-4GLA 28mm

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.04 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°

4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

PTZ

Movement Range (Pan)

0° to 345°

Movement Range (Tilt)

0° to 80°

Pan Speed

Up to 25°/s

Tilt Speed

Up to 20°/s

DORI

DORI

2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (768 x 432)

60 Hz: 30 fps (768 x 432)

Video Compression

Main stream: H.265/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK

Security

Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

Protocols

TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client

iVMS-4200,Hik-Connect

Web Browser

Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

Standard

LTE-TDD,LTE-FDD

Frequency

EU:

LTE-FDD: B1/3/5/7/8/20/28

IN:

LTE-FDD: B1/3/5/8

LTE-TDD: B34/38/39/40/41

LA:

LTE-FDD: B2/3/4/5/7/8/28/66

NA:

LTE-FDD: B2/4/5/12/13/17/66/71

Uplink and Downlink Data Rate

EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps

IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps

LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps

NA: uplink: 50 Mbps, downlink: 150 Mbps

SIM Card Type

Nano SIM


Wide Dynamic Range (WDR)

Digital WDR

SNR

≥ 52 dB

Privacy Mask

4 programmable polygon privacy masks

Day/Night Switch

Day,Night,Auto,Schedule


BLC,HLC,3D DNR

Image Settings

Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

1 built-in microphone

Built-in Speaker

Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite

General

Power

12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

*A switching adapter is included in the package.

Dimension

131.9 mm × 164 mm × 312.6 mm (5.19" × 6.46\" × 12.31\")

131.9 mm × 164 mm × 332.6 mm (5.19 × 6.46\" × 13.10\")"

Material

Plastic

Package Dimension

224 mm × 178 mm × 230 mm (8.82" × 7.01" × 9.06")

Weight

Approx. 600 g (1.32 lb.)

With Package Weight

Approx. 900 g (1.98 lb.)

Storage Conditions

-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection

IP66: IEC 60529-2013
